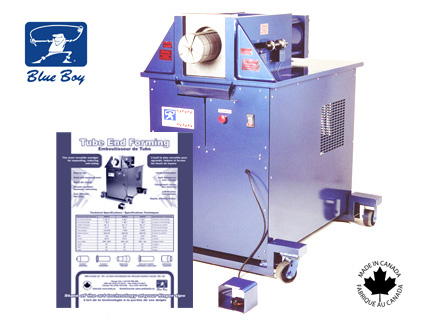

Versatile Swaging Machine



The most versatile swaging machine for expanding, reducing and sizing.

-Easy to use.

-Build with hardened steel.

-Rapid die change.

-Smooth operation with automatic lubricating.

-Fast, efficient, accuracy.

A level of accuracy and versatility never reached before.

3 Models available: SWE03, SWE04 and SWE05.





Technical information:

Specification
SWE03
SWE04
SWE05
End forming diameter:
1" to 3"
1" to 4"
1" to 5"
End forming length:
1" to 4"
1" to 5"
1" to 6"
Cylinder dimension:
Dia.: 5"
Dia.: 6"
Dia.: 8"
End forming force:
15.7 T
19.0 T
25.0 T
Pump capacity:
3.25 GPM
7 GPM
9 GPM
System pressure:
3,000 PSI
3,000 PSI
3,000 PSI
Motor:
5 HP
10 HP
15 HP
Control:
AUTO.
AUTO.
AUTO.
Input voltage:
208 / 600V
600V - 3-Phase
600V - 3-Phase
Length:
30"
36"
40"
Width:
24"
30"
32"
Height:
48"
48"
48"
